M111-D002

IM-45WPE Cuber, Self Contained

Πάγος

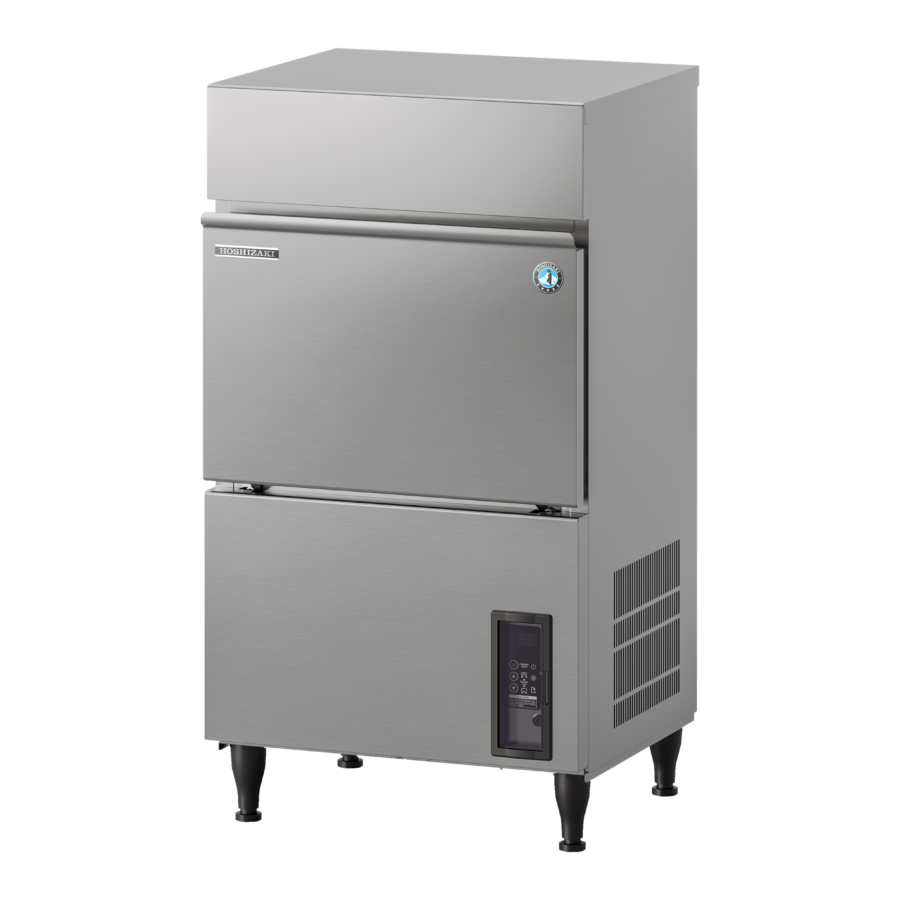

This Hoshizaki IM-45WPE is the new standard IM CUBE variant of a Cuber, Self Contained producing up to 50 kg of the world-famous Hoshizaki ice cubes (Large cubes, Standard) per 24 hours. The dimensions of this model are mm without legs.

SET YOURSELF UP FOR GROWTH AND SUCCESS.

The IM CUBE models come with smart product improvements (compared to the previous IM range), such as automated cleaning (wash auto-restart), water circuit cleaning notification, condenser cleaning notification, scoop holder kit (optional), higher-grade stainless steel, magnetic DC Pump Motor with variable speed, and stand-by/wash buttons. Below is an overview of our new product features and their benefits. We also highlight our legacy features and their continued value.

View spec sheet

Key Features

INCREASED HYGIENE & FOOD SAFETY

NEW: Scoop Holder-Kit (optional)
Το κλειστό κύκλωμα νερού παρέχει μέγιστη προστασία από κάθε είδους μόλυνση καθ' όλη τη διάρκεια της διαδικασίας κοπής σε κύβους.

INCREASED PERFORMANCE

NEW: More efficient magnetic DC Pump Motor with variable speed
Use of R290 natural refrigerant

INCREASED ICE QUALITY

NEW: Pump motor with smart water flow that adjusts to the different phases of the ice-making process, preventing chipped/cloudy ice cubes.
Closed Cell System, individual cube forming

INCREASED DURABILITY

NEW: Automated Cleaning
NEW: Less Wear & Tear: internal components made of food-grade stainless steel (AISI 430)
NEW: Magnetic DC Pump Motor with variable speed
Highest-grade insulation material (foaming instead of polystyrene)

ΑΝΕΣΗ ΧΕΙΡΙΣΤΗ/ΣΥΝΤΗΡΗΣΗΣ

NEW: Water circuit cleaning notification
NEW: Condenser cleaning notification
NEW: Control panel for easy adjustable dimple size
NEW: Water tank & DC pump are easily removable

INCREASED ENERGY SAVING

NEW: DC Pump Motor with variable speed
NEW: Stand-by function
Highest-grade insulation material (foaming instead of polystyrene)
Use of R290 natural refrigerant

INCREASED WATER SAVING

NEW: Magnetic DC Pump Motor with variable speed
NEW: Improved water tank design to consume less water

Specifications

Specification	Value
Item number	M111-D002
Model name	IM-45WPE Ice maker type Cube icemaker
Brand	Hoshizaki
Product configuration	Self Contained
Warranty period	3 Years on Parts & Labour - based on country agreement
Country of origin	UK
Accessories included	Installation kit, Legs, Scoop Sub series IM Cube
Title	Cuber, Self Contained
Corresponding water filters	4HC-H Single Water Filter, 4HC Replacement Cartridge
Width	503 mm
Width (packed)	635 mm
Depth	456 mm
Depth (packed)	520 mm
Height	840 mm
Height (packed)	1007 mm Volume (packed) 0.3325 m³ Dimensions legs for legs add 90-125 mm
Electric Consumption	0.225 kW
Ambient temperature (maximum)	40 °C
Ambient temperature (minimum)	1 °C
Voltage	range (Rated
Voltage	) ±6%
Water supply pressure (maximum)	0.8MPa (8bar)
Water supply pressure (minimum)	0.07MPa (0.7bar)
Water supply temperature (maximum)	35 °C
Water supply temperature (minimum)	5 °C Functions Automated cleaning
Electrical circuit breaker protection	5 A
Exterior	Stainless steel AISI 441, Galvanized steel (Rear)
Gross weight	53 kg
Net weight	45 kg
Heat Rejection (AT 32°C, WT 21°C)	0.44 kW
Power supply	1/220 - 240V/50Hz
Storage bin capacity	18 kg
Cooling system	Water Cooled
Ice type	Large cubes, Standard Ice production 50
Water consumption	Water cooled ice makers 0.25
CO2 equivalent	0.27 kg GWP 3 GWP
Refrigerant	0.09 kg
Refrigerant type	R290
SKU	M111-D002
