M119-D006

IM-240AWPE Cuber, Modular

Ice

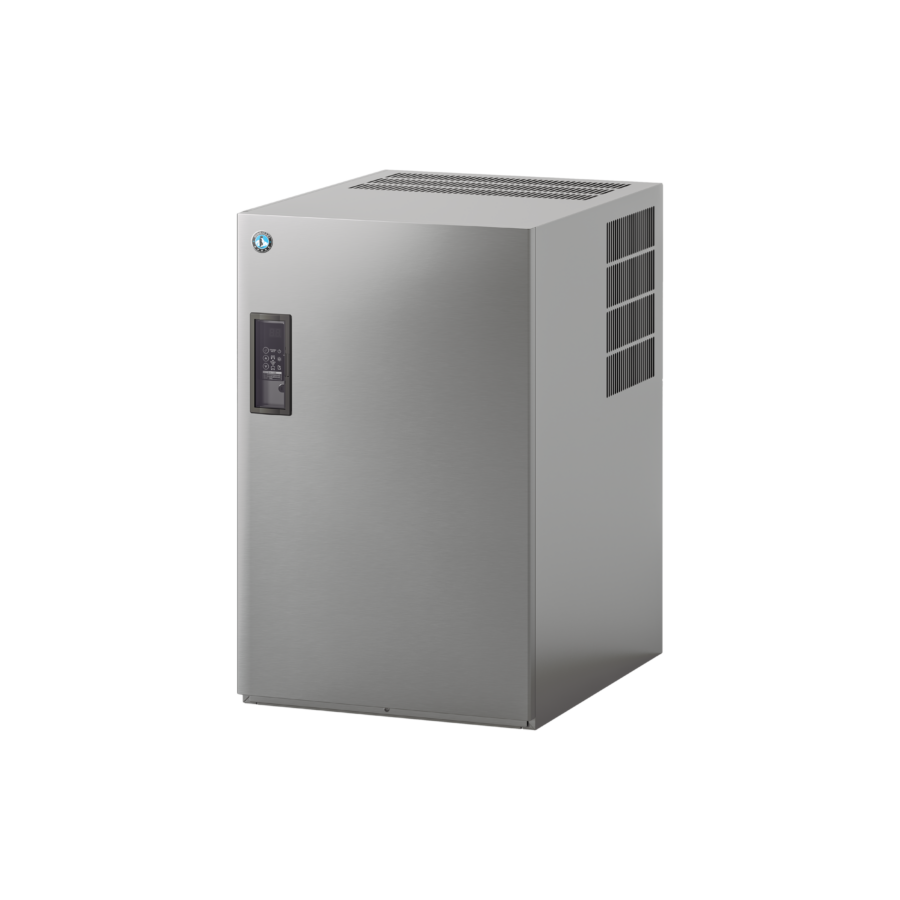

This Hoshizaki IM-240AWPE is the new standard IM CUBE variant of a Cuber, Modular producing up to 205 kg of the world-famous Hoshizaki ice cubes (Large cubes, Standard) per 24 hours. The dimensions of this model are 560 x 700 x 880 mm.

SET YOURSELF UP FOR GROWTH AND SUCCESS.

The IM CUBE models come with smart product improvements (compared to the previous IM range), such as automated cleaning (wash auto-restart), water circuit cleaning notification, condenser cleaning notification, scoop holder kit (optional), higher-grade stainless steel, magnetic DC Pump Motor with variable speed, and stand-by/wash buttons. Below is an overview of our new product features and their benefits. We also highlight our legacy features and their continued value.

View spec sheet

Key Features

INCREASED HYGIENE & FOOD SAFETY

NEW: Scoop Holder-Kit (optional)
The closed water circuit provides maximum protection against any type of contamination during the entire cubing process.

INCREASED PERFORMANCE

NEW: More efficient magnetic DC Pump Motor with variable speed
Use of R290 natural refrigerant

INCREASED ICE QUALITY

NEW: Pump motor with smart water flow that adjusts to the different phases of the ice-making process, preventing chipped/cloudy ice cubes.
Closed Cell System, individual cube forming

INCREASED DURABILITY

NEW: Automated Cleaning
NEW: Less Wear & Tear: internal components made of food-grade stainless steel (AISI 430)
NEW: Magnetic DC Pump Motor with variable speed
Highest-grade insulation material (foaming instead of polystyrene)

OPERATOR/MAINTENANCE CONVENIENCE

NEW: Water circuit cleaning notification
NEW: Condenser cleaning notification
NEW: Control panel for easy adjustable dimple size
NEW: Water tank & DC pump are easily removable

INCREASED ENERGY SAVING

NEW: DC Pump Motor with variable speed
NEW: Stand-by function
Highest-grade insulation material (foaming instead of polystyrene)
Use of R290 natural refrigerant

INCREASED WATER SAVING

NEW: Magnetic DC Pump Motor with variable speed
NEW: Improved water tank design to consume less water

Specifications

Specification	Value
Item number	M119-D006
Model name	IM-240AWPE Ice maker type Cube icemaker
Brand	Hoshizaki
Product configuration	Modular
Warranty period	3 Years on Parts & Labour - based on country agreement
Country of origin	UK
Accessories included	Ice chute, Installation kit, Scoop Sub series IM Cube
Title	Cuber, Modular
Corresponding water filters	4HC-H Twin Water Filter, 4HC Replacement Cartridge
Width	560 mm
Width (packed)	665 mm
Depth	700 mm
Depth (packed)	820 mm
Height	880 mm
Height (packed)	1054 mm Volume (packed) 0.5747 m³
Electric Consumption	0.735 kW
Ambient temperature (maximum)	40 °C
Ambient temperature (minimum)	1 °C
Voltage	range (Rated
Voltage	) ±6%
Water supply pressure (maximum)	0.8MPa (8bar)
Water supply pressure (minimum)	0.07MPa (0.7bar)
Water supply temperature (maximum)	35 °C
Water supply temperature (minimum)	5 °C Functions Automated cleaning
Electrical circuit breaker protection	5 A
Exterior	Stainless steel AISI 441, Galvanized steel (Rear)
Gross weight	89 kg
Net weight	78 kg
Heat Rejection (AT 32°C, WT 21°C)	2.51 kW
Power supply	1/220 - 240V/50Hz
Cooling system	Water Cooled
Ice type	Large cubes, Standard Ice production 205
Water consumption	Water cooled ice makers 1.03 Corresponding Bin(s) B-140SB, B-210SB, B-340SB
CO2 equivalent	0.441 kg GWP 3 GWP
Refrigerant	0.147 kg
Refrigerant type	R290 Corresponding top kits TK-30 for B-140SB, B-210SB, B340SB (optional, not required), TK-8D for B-210SB, TK-8D + TK18D for B-340SB
SKU	M119-D006
