M098

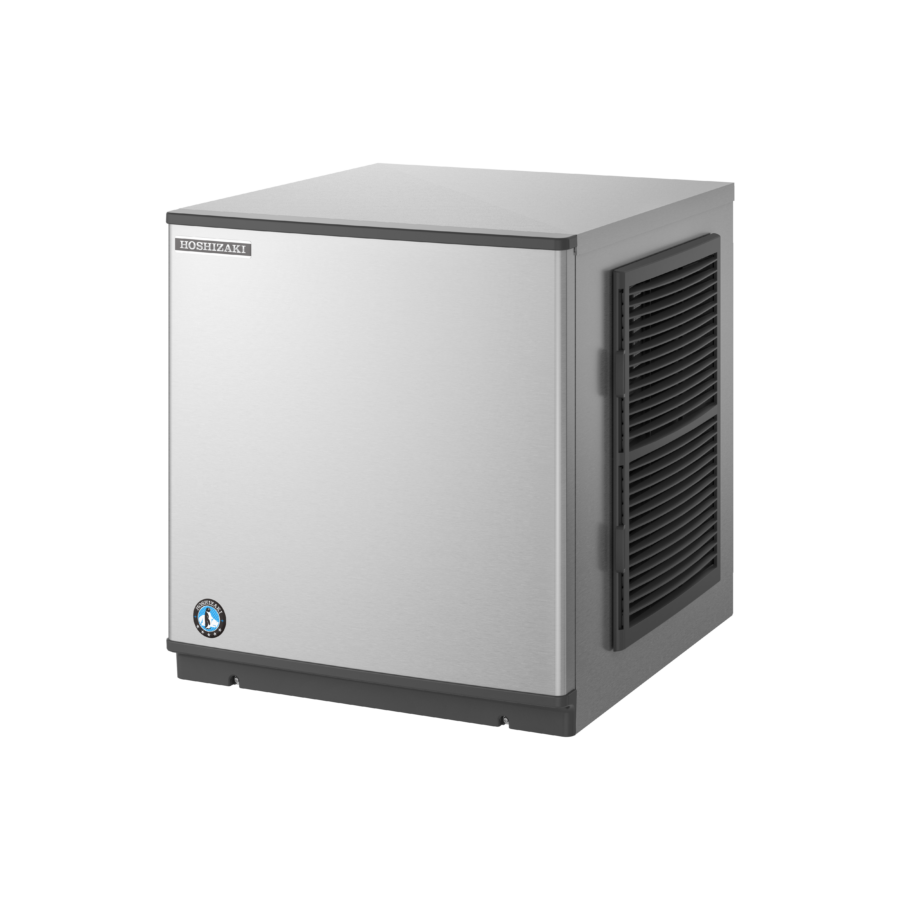

KMD-270ABE-R452 Crescent Ice Maker, Modular

Ice

This Hoshizaki KMD-270ABE-R452 is a modular Crescent Edge ice maker producing up to 275 kg of high-quality Crescent Edge Ice per 24 hours, meeting even the strictest hygiene requirements and suitable for all operational requirements and kitchen measurements.

The KM Edge range has an enlarged, bonded evaporator surface. Accelerating harvest cycles, the technology behind the KM Edge range will help you to increase your serving capacity instantly. More ice in less amount of time.

View spec sheet

Key Features

The KMD-270ABE-R452 uses refrigerant R452A.

Unique Technology

The double-sided evaporator in all KM machines is made of stainless steel – the best material for improved longevity, food safety, and cleaning without damaging to the machine. The external material is made of . Thanks to its rounded, yet edgy form, the Hoshizaki Crescent Ice will not cluster inside the ice chest. That is why it is considered the perfect ice shape for bottle coolers, allowing you to place bottles inside the ice effortlessly. The ice can be used for chilling drinks, fresh produce display, and bottle cooling as well as cooking.

Convenience

Always focusing on operating convenience and food safety, the air filters are easily accessible from the front for routine cleaning. With intake and outflow positioned at the front, the KM is ideal for built-in installation opportunities. “

Smart Design

Like all Hoshizaki ice makers, the KMD-270ABE-R452 is designed to last and comes with smart design extras such as the double-sided, stainless steel evaporator, unique in the industry, produces more ice per cycle with lower energy consumption and resistance to descaling acids.

Flexibility

Need to amp up your production capacity? The variable setups with modular bins and bases allow the user to mix and match depending on individual requirements and conditions. The dimensions of the KMD-270ABE-R452 are 560 x 625 x 610 mm.

Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.

Specifications

Specification	Value
Item number	M098
Model name	KMD-270ABE-R452 Extended spec sheets approved 1 Ice maker type Crescent ice maker
Brand	Hoshizaki
Product configuration	Modular
Warranty period	2 Years on Parts & Labour - based on country agreement
Country of origin	UK
Title	Crescent Ice Maker, Modular
Corresponding water filters	4HC-H Twin Water Filter, 4HC Replacement Cartridge
Width	560 mm
Width (packed)	710 mm
Depth	625 mm
Depth (packed)	659 mm
Height	610 mm
Height (packed)	796 mm Volume (packed) 0.372 m³
Electric Consumption	0.984 kW
Ambient temperature (maximum)	40 °C
Ambient temperature (minimum)	7 °C
Voltage	range (Rated
Voltage	) ±6%
Water supply pressure (maximum)	0.8MPa (8bar)
Water supply pressure (minimum)	0.07MPa (0.7bar)
Water supply temperature (maximum)	35 °C
Water supply temperature (minimum)	7 °C
Electrical circuit breaker protection	5 A
Exterior	Stainless steel AISI 441, Galvanized steel (Rear), Plastic (Louver)
Gross weight	66 kg
Net weight	57 kg
Heat Rejection (AT 32°C, WT 21°C)	2.435 kW
Power supply	1/220 - 240V/50Hz
Cooling system	Air Cooled
Ice type	Crescent Edge Ice production 275
Water consumption	Air cooled ice makers 0.98
Optional Extras	4HC-H water filtration Corresponding Bin(s) B-140SB, B-210SB, B-340SB
CO2 equivalent	1669 kg GWP 2140 GWP
Refrigerant	0.78 kg
Refrigerant type	R452A Corresponding top kits TK-8D for B-210SB, TK-8D + TK18D for B-340SB
SKU	M098
